Tech supportBariatric Toilets – Full Guide to Weight Capacity, Design & Specification
Choosing the right bariatric toilet involves more than simply selecting a WC with a higher weight capacity. The strength of the toilet pan, stability of its base, toilet seat, fixing arrangements and installation all contribute to the safety and suitability of the finished installation.

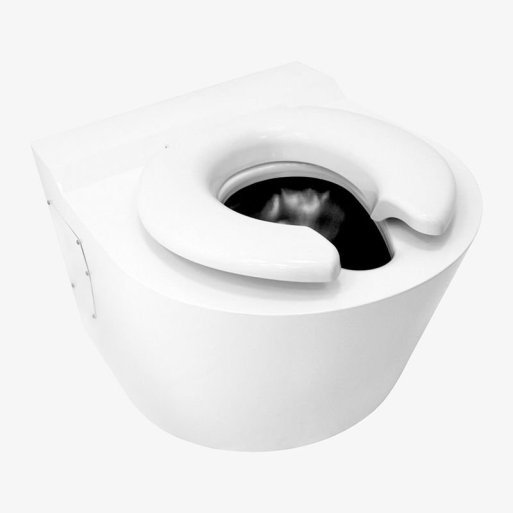

The BAR bariatric toilet is manufactured by Acorn Engineering, a member of our international partner group of companies. This direct manufacturing relationship means Washware Essentials supplies the original manufacturer's product, supported by genuine technical documentation and load testing, rather than an independently sourced alternative
Bariatric toilets are designed for heavier users who require additional structural support and stability beyond that offered by conventional sanitaryware. They are commonly specified for hospitals, care homes, accessible washrooms, local authority adaptations and private homes.
However, not all bariatric toilets are constructed or tested to the same standards. Understanding the difference between a manufacturer's working load, structural load testing and the capacity of the complete installation is particularly important.
This guide explains what to look for when choosing a bariatric toilet, how weight capacities should be interpreted, the benefits of different construction methods and the relevant testing standards.
What Is a Bariatric Toilet?
A bariatric toilet is a specially designed WC intended to accommodate heavier users, providing additional structural strength, stability and support compared with a conventional toilet.
Although bariatric toilets perform the same basic function as standard WCs, their construction can differ significantly.
Typical features include:
- Increased structural strength and load-bearing capacity.
- Heavy duty construction using reinforced ceramic or stainless steel.
- Wider seating arrangements for improved comfort.
- A substantial base designed to provide greater stability.
- Secure fixing arrangements to the floor and, where appropriate, the wall.
- Compatibility with specialist heavy duty toilet seats.
- Durable construction suitable for healthcare and demanding environments.
Bariatric toilets may be specified by occupational therapists, healthcare professionals, architects, local authorities and facilities managers.
The most suitable toilet will depend on the individual user's weight, mobility, transfer requirements and the installation environment.
![]()
What Weight Can a Bariatric Toilet Support?
The weight capacity of a bariatric toilet depends on its design, construction, manufacturer's stated working load and the strength of the complete installation.
It is important to distinguish between a toilet's working load and the maximum weight applied during structural testing.
Maximum Working Load
The maximum working load is the load that the manufacturer states the toilet pan is designed to support when correctly installed in accordance with its requirements.
Different bariatric toilets have different capacities, so the manufacturer's stated rating should always be checked before specifying a product.
For example, the Washware Essentials BAR stainless steel bariatric toilet has a manufacturer-stated maximum working load of 1,000kg.
This provides substantial weight-bearing capacity for specialist bariatric applications, although the capacity of the complete installation must also be considered.

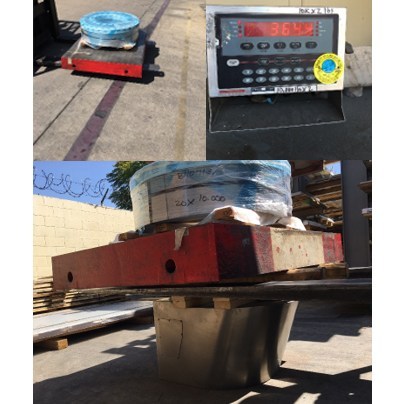

![]( "static load testing on Bariatric wc pan")
Static Load Testing
Static load testing involves applying a controlled weight or force to a toilet for a specified period to assess its structural strength.
The test may measure whether the toilet suffers permanent deformation, cracking, structural damage or failure.
A static test load is not necessarily the same as the manufacturer's recommended maximum working load.
Complete Installation Capacity
Even where a toilet pan has a high working load, the overall installation may have a lower capacity because of other components.
These include:
- The toilet seat and its fixings.
- Floor and wall fixing arrangements.
- The strength of the supporting floor.
- The condition of the wall or supporting structure.
- The installation method.
- Additional forces generated during use or transfers.
For this reason, the weight capacity of the toilet pan should never be considered in isolation.
Bariatric Toilet Load Testing – Understanding the Figures
Load testing provides valuable evidence when comparing heavy duty toilets, but the results must be interpreted correctly.
Different tests may use different loads, durations, supporting arrangements and assessment criteria.
A toilet tested under a very high static load for 10 minutes has not necessarily undergone the same assessment as a toilet tested under a lower load for one hour.
It is therefore important to consider the complete test method rather than comparing only the highest weight figure.
Example: BAR Stainless Steel Bariatric Toilet
The Washware Essentials BAR bariatric toilet, manufacturer's model WH2125A / 8841-RM, is supported by documented manufacturer load testing.
The toilet has a manufacturer-stated working load of 1,000kg and has undergone additional static load testing to 2,447kg (5,394lbs).
During the manufacturer's structural test:
- A combined load of 2,447kg was applied to the floor-standing WC pan.
- The load was maintained for 10 minutes.
- The toilet was inspected and measured after the load was removed.
- No visible permanent damage or structural failure was recorded.
- No noticeable change in the measured seat height was identified.
This test demonstrates the substantial structural strength of the stainless steel toilet pan.
However, the 2,447kg figure represents a controlled static test load, not the toilet's recommended maximum working load.
The manufacturer's stated working load remains 1,000kg, subject to the appropriate installation conditions.
The toilet is also supported by separate EN 997 structural load testing, which is discussed later in this guide.
Why Is the Base Design Important for a Bariatric Toilet?
The base design of a bariatric toilet is an important consideration when assessing stability and structural support.
Many conventional WC pans feature a relatively wide bowl supported by a narrower pedestal at floor level.
Although this construction is suitable for normal applications, a wider supporting footprint can be beneficial where a toilet is designed for substantially increased loads.
Some heavy duty bariatric toilets feature a full-width floor-standing construction, where the base is the same width as the top of the WC pan.
This creates a broad supporting footprint extending from the seating area down to the floor, rather than relying on a narrower pedestal.
Full-Width Bariatric Toilet Design
The Washware Essentials BAR bariatric toilet incorporates a full-width construction, with the top of the toilet the same width as its base.
This design offers several practical advantages:
- A broad supporting footprint at floor level.
- Substantial stainless steel construction extending down to the base.
- A stable floor-standing arrangement.
- Secure wall and floor fixing points.
- A robust design suitable for demanding bariatric applications.
The full-width base, combined with 2mm thick stainless steel construction, forms an important part of the toilet's overall structural design.
However, the stability of any bariatric toilet also depends on correct installation, suitable fixings and the strength of the supporting structure.
A wide base alone should not be interpreted as proof of a particular stability rating.
Stainless Steel or Ceramic Bariatric Toilets?
Bariatric toilets may be manufactured from stainless steel, reinforced ceramic or other materials.
Each construction method has different characteristics, and the choice should depend on the intended application.
Stainless Steel Bariatric Toilets
Heavy duty stainless steel toilets offer a combination of structural strength, durability and resistance to damage.
They can be particularly suitable for hospitals, healthcare facilities, care homes and specialist accessible washrooms.
Depending on the design, features may include:
- Heavy gauge stainless steel construction.
- Welded structural components.
- Full-width floor-standing bases.
- Secure wall and floor fixings.
- Powder coated external finishes.
- Uncoated stainless steel internal bowls and traps.
Stainless steel is also less susceptible to brittle fracture than ceramic materials, although this does not mean every stainless steel toilet has a higher working load than every ceramic model.
The actual structural performance must be established through the manufacturer's design, testing and stated ratings.
Ceramic Bariatric Toilets
Ceramic toilets are widely used in domestic and commercial washrooms and are also available in specialist heavy duty designs.
They offer a familiar appearance and a glazed surface that is generally easy to clean.
However, conventional ceramic toilets should not automatically be assumed suitable for bariatric applications.
Where a ceramic WC is being considered, its manufacturer's load capacity, installation requirements and supporting test documentation should be checked.
Which Material Is Better?
There is no single material that is automatically suitable for every bariatric installation.
The most important considerations are the toilet's documented strength, stated working load, base design, fixing arrangement and suitability for the intended user.
For particularly demanding environments, a purpose-designed heavy duty stainless steel toilet may offer useful advantages in durability and structural construction.
What Is EN 997 and Why Does It Matter?
EN 997:2012+A1:2015 is a European standard covering WC pans and WC suites with integral traps.
It establishes performance requirements and test methods for important characteristics of a toilet.
These include:
- Flushing performance.
- Bowl washing efficiency.
- Toilet paper clearance.
- Solid waste simulation.
- Water seal depth.
- Oversplash prevention.
- Water and leak tightness.
- Structural load resistance.
- Durability.
These requirements are relevant because a bariatric toilet must not only support the intended user but also function effectively as a sanitary appliance.
A heavily constructed toilet with inadequate flushing performance could create hygiene and maintenance problems, particularly in healthcare or shared facilities.
EN 997 Structural Load Testing
EN 997 includes a static load resistance test applicable to relevant non-ceramic and wall-hung WC designs.
The test involves applying a force of approximately 4kN, equivalent to around 408kg-force, for one hour.
The WC is assessed for cracking and permanent deformation following the test.
The EN 997 test is a standardised structural assessment and should not be confused with the manufacturer's maximum working load.
EN 997 Flushing Performance
The BAR bariatric toilet is also supported by manufacturer flushing performance testing against EN 997 requirements.
The documented testing includes:
6 Litre Full Flush
The toilet was tested with a nominal full-flush volume of 6 litres.
Bowl Washing
Testing assessed the ability of the flushing system to wash the internal surface of the WC bowl.
Toilet Paper Clearance
The test required the toilet to clear 12 sheets of toilet paper in at least four out of five flushing operations. The manufacturer's report records successful completion.
Solid Waste Simulation
Plastic-ball testing assessed the ability of the WC to clear simulated waste. The manufacturer's report records successful clearance results across five tests.
Water Seal Depth
The measured water seal depth was 63.5mm, exceeding the 50mm minimum specified in the test documentation.
Oversplash Prevention
Testing assessed whether flushing water splashed beyond the toilet bowl. The manufacturer's report records a successful result.
Leak Tightness
The manufacturer's report records no leakage from the WC pan, cistern or their connection during the relevant test.
The manufacturer has also issued a Declaration of Conformity referencing EN 997:2012+A1:2015.
When specifying a specialist WC, documented flushing performance can be just as important as structural strength.
Choosing the Correct Bariatric Toilet Seat
The toilet seat is a particularly important component of any bariatric installation.
A heavy duty toilet pan may have a substantially higher working load than the seat fitted to it.
Consequently, the capacity of the complete installation cannot be determined from the toilet pan alone.
Specialist bariatric toilet seats may feature:
- Wider seating areas for improved comfort.
- Reinforced seat construction.
- Heavy duty hinges and fixings.
- Higher load capacities than conventional seats.
Designs intended for larger users.
The Washware Essentials BAR bariatric toilet is available with an optional Big John heavy duty toilet seat and cover, separately load tested to 500kg.
The 500kg test figure should not automatically be interpreted as the seat's rated working load.
Where the user requires a higher-capacity seating arrangement, the seat manufacturer's rated capacity and suitability must be confirmed before installation.
Why Seat Selection Matters
A toilet pan with a 1,000kg working load does not automatically create a complete toilet installation rated to 1,000kg.
The seat, fixings and supporting structure must also be suitable for the anticipated loads.
This is especially important where the user may place additional force on the seat during transfers or when sitting down.
Bariatric Toilet Height and Accessibility
The correct toilet height can be particularly important for heavier users and people with reduced mobility.
A toilet that is too low may make standing difficult, while a toilet that is too high may prevent the user from placing their feet securely on the floor.
The appropriate height depends on several factors:
- The user's height and leg length.
- Mobility and balance.
- Ability to sit and stand independently.
- Wheelchair height and transfer arrangements.
- The position of grab rails and supporting equipment.
- Whether carers or mechanical lifting equipment are required.
A higher toilet is not automatically better for every bariatric user.
For individual adaptations, an occupational therapist should assess the user's requirements and recommend the appropriate WC height and supporting equipment.
Bariatric Toilets and Wheelchair Access
A bariatric toilet may be suitable for a wheelchair user, but this depends on the overall washroom design.
Consideration should be given to:
- The available space around the toilet.
- Side-transfer requirements.
- Wheelchair positioning.
- Grab rail locations.
- Assistance from carers.
- Compatibility with hoists and transfer equipment.
A bariatric toilet's structural strength does not automatically mean that the installation satisfies all accessibility requirements.
Concealed or Exposed Cistern?
Bariatric toilets may be available with different cistern and flushpipe arrangements.
The choice will depend on the washroom layout, maintenance requirements and available installation space.
Concealed Cistern
A concealed cistern is installed behind the wall or within a suitable service void.
Advantages may include a neat appearance and fewer exposed components.
However, suitable access must be retained for maintenance and servicing.
Exposed Cistern
An exposed cistern is installed externally and connected to the WC using a flushpipe.
This can provide straightforward access to flushing components for inspection and maintenance.
Bariatric Toilet Connection Options
The Washware Essentials BAR bariatric toilet is available with:
- Rear entry flushpipe connection for concealed cistern installations.
- Top entry flushpipe connection for exposed cistern installations.
The cistern and flushing arrangement should be compatible with the WC pan and its specified flushing performance.
Installation and Fixing Requirements
Correct installation is essential for any bariatric toilet.
Even where a WC pan has a substantial working load, its performance depends on the strength and suitability of the supporting structure.
Important considerations include:
Floor Strength
The supporting floor must be capable of accommodating the anticipated loads, including loads transferred through the toilet base and fixings.
Wall Construction
Where wall fixings are required, the supporting wall must be suitable for the specified fixing arrangement.
Fixing Methods
The toilet should be installed using the manufacturer's recommended fixing points and suitable fixings for the supporting materials.
Transfer Loads
Additional forces may be generated when a user transfers from a wheelchair or other mobility equipment.
These loads should be considered when assessing the overall installation.
Toilet Seat
The seat and its fixing arrangement must be appropriate for the intended user.
Accessibility
Adequate space should be provided for the user, carers and any required mobility or lifting equipment.
For specialist healthcare installations or where unusually high loads are anticipated, a suitably qualified professional should assess the supporting structure and installation requirements.
Bariatric Toilets for Different Applications
Hospitals and Healthcare Facilities
Hospitals may require bariatric toilets for patients whose weight, mobility or clinical needs make conventional sanitaryware unsuitable.
Important considerations include structural strength, hygiene, durability, safe transfers and compatibility with specialist equipment.
Care Homes and Assisted Living
In care environments, a bariatric toilet must meet the individual resident's needs while allowing appropriate access for carers.
Seat height, surrounding space and compatibility with mobility equipment are particularly important.
Local Authority Occupational Therapy Adaptations
Occupational therapists may recommend a specialist heavy duty toilet where a conventional WC does not provide adequate strength or support.
The toilet should be selected as part of the wider adaptation, taking account of the user's mobility and the existing bathroom layout.
Private Homes
Bariatric toilets can also be installed in domestic bathrooms where additional structural strength is required.
Before purchasing, the available space, plumbing connections, floor construction and user requirements should be assessed.
Commercial and Specialist Accessible Washrooms
Some commercial and specialist facilities may require a bariatric WC as part of their accessible sanitary accommodation.
The appropriate product should be selected according to the expected users, building requirements and installation conditions.
Bariatric Toilet Specification Checklist
Before specifying or purchasing a bariatric toilet, consider the following:
- Working load: What maximum working load does the manufacturer state for the WC pan?
- Load testing: Is documented structural testing available for the exact model?
- Toilet seat: Is the seat's rated capacity suitable for the intended user?
- Base design: Does the toilet have a substantial supporting footprint?
- Fixings: Are suitable wall and floor fixing arrangements provided?
- Supporting structure: Can the floor and wall accommodate the anticipated loads?
- Flushing performance: Has the WC been tested against a recognised standard such as EN 997?
- Toilet height: Is the height suitable for the user's mobility and transfer requirements?
- Cistern arrangement: Is a concealed or exposed cistern required?
- Accessibility: Is there sufficient space for wheelchairs, carers or transfer equipment?
- Maintenance: Can the toilet and flushing components be accessed for servicing?
- Documentation: Are technical specifications, installation instructions and relevant test reports available?
These checks help ensure that the selected toilet is suitable for its intended application rather than relying on a headline load-testing figure.
Heavy Duty Stainless Steel Bariatric Toilets from Washware Essentials
Washware Essentials supplies the BAR heavy duty stainless steel bariatric toilet, designed for healthcare, accessible washroom and specialist accommodation applications.
The BAR toilet is manufactured from 2mm thick stainless steel, with a white powder coated exterior and an uncoated stainless steel internal bowl and trap.
Its full-width floor-standing construction means that the base is the same width as the top of the toilet, providing a broad supporting footprint.
Additional features include secure wall and floor fixing points and a choice of rear or top entry flushpipe connections.
BAR Bariatric Toilet – Key Specifications
Feature Specification Product code BAR Construction 2mm stainless steel External finish White powder coated Base design Full-width floor-standing Manufacturer's working load 1,000kg Manufacturer static load test 2,447kg for 10 minutes EN 997 structural test 4kN for one hour Flushing volume Nominal 6 litres Supporting standard documentation EN 997:2012+A1:2015 Flushpipe connection Rear or top entry Optional seat Big John heavy duty seat, load tested to 500kg
The manufacturer has documented the WC pan's structural strength through testing, including a 2,447kg static load test completed without visible permanent damage or structural failure.Supporting EN 997 performance testing and the manufacturer's Declaration of Conformity are also available.
The toilet is normally available from UK stock, with delivery usually within 1–2 working days.
View the BAR Heavy Duty Bariatric Toilet
Our sales team can provide further technical information and supporting manufacturer documentation for specialist projects.
-
Posted by Paul Thorn
21st October 2026
