Stock Stainless Steel Wash Trough
Product Code: WTNS
400mm standard projection
Pre drilled 35mm single tap holes
Fast UK 1 - 2 working day delivery
Description

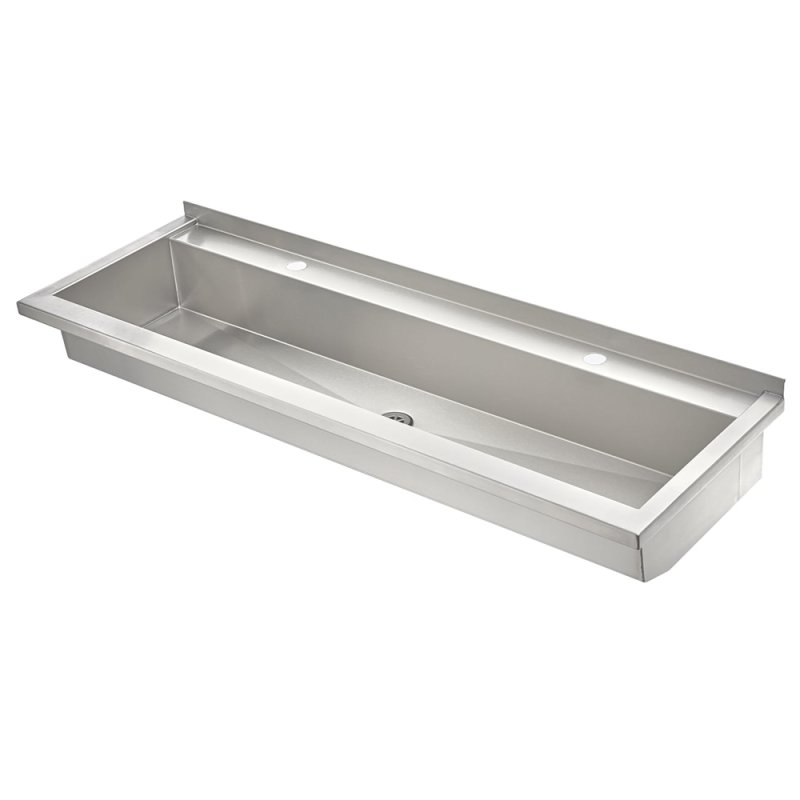

Stock Stainless Steel Hand Washing Trough 400mm Projection
Product Code WTNS
The WTNS is a stock stainless steel hand washing trough supplied ready-drilled with a single 35mm tap hole per user, making it a straightforward choice for installations using single-hole taps. Available in eight standard lengths for 1–4 users, it is ideal for schools, commercial washrooms, workplaces, factories and other high-use environments.
Manufactured in one piece from 1.2mm thick Grade 304 stainless steel, each trough includes a central 38mm waste fitting and integral wall-fixing brackets. All standard sizes are held in stock for fast UK delivery.
For projects requiring different tap-hole sizes or configurations, including separate hot and cold taps, our WTN stainless steel wash trough can be drilled to your specification.
Key Features
- Manufactured in one piece from 1.2mm thick Grade 304 stainless steel.
- 400mm projection from the wall.
- Eight standard lengths from 500mm to 2400mm for 1–4 users.
- Pre-drilled with a single 35mm tap hole per user.
- Suitable for a wide range of single-hole commercial taps.
- Supplied with central 38mm waste fitting.
- Integral wall-fixing brackets.
- Suitable for wall-mounted installation with optional front support legs.
- Designed for commercial, educational, industrial and public washrooms.
- All standard sizes held in stock for fast UK delivery.
- Manufactured in accordance with BS EN 14296:2015+A1:2018.

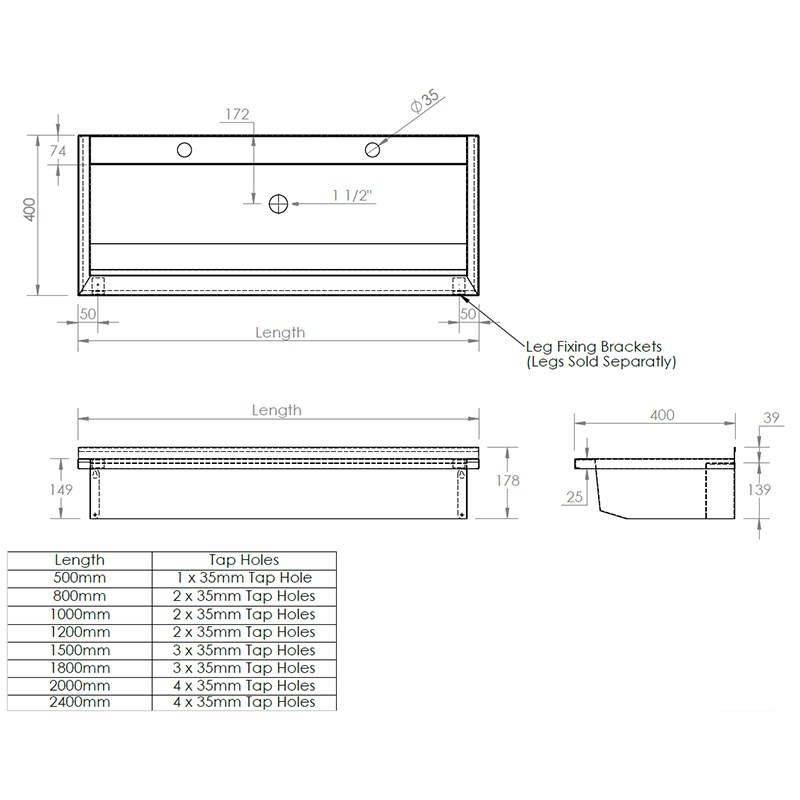

Sizes & Number of Users
- 500mm – 1 user
- 800mm – 2 users
- 1000mm – 2 users
- 1200mm – 2 users
- 1500mm – 3 users
- 1800mm – 3 users
- 2000mm – 4 users
- 2400mm – 4 users
Projection: 400mm front to back
Bowl depth: 149mm
Rear splashback: 39mm
Tap Holes
WTNS wash troughs are supplied as standard with a single 35mm tap hole per user, allowing them to be used with a wide range of single-hole taps, including push-button, sensor and monobloc mixer taps.
The pre-drilled configuration provides a convenient stock solution where bespoke tap-hole drilling is not required.
If you require 22mm tap holes, separate hot and cold tap holes or another configuration, see our WTN Stainless Steel Wash Trough.
Delivery
In stock – usually delivered within 1–2 working days.
All eight standard WTNS sizes are held in stock for fast UK delivery.
Optional Extras
- Commercial taps including time-flow, sensor and mixer options.
- 600mm junior-height stainless steel front support legs.
- 950mm standard-height stainless steel front support legs.
- 38mm plastic bottle trap.
- Chrome-plated brass bottle trap with chrome waste pipe and flange.
- Stainless steel bottle trap cover.
- Stainless steel wall-mounted and deck-mounted soap dispensers.
- Stainless steel paper towel dispensers.
DfE & BS EN 14296 Compliance
The WTNS wash trough is manufactured in accordance with BS EN 14296:2015+A1:2018 – Sanitary appliances – Communal washing troughs and is suitable for installation in schools, colleges and other educational facilities.
The trough is designed to form part of a Department for Education (DfE) compliant washroom installation, incorporating an integral rear upstand and allowing for contractor-supplied wall finishes, splashbacks, concealed services and access panels where required by the project specification.
Overall compliance with the Department for Education School Output Specification is achieved through the completed washroom installation.
Cleaning & Maintenance
Clean stainless steel regularly using warm soapy water or a mild detergent. Avoid bleach, chloride-based cleaners, steel wool and other aggressive or abrasive cleaning products that may cause staining or damage to the stainless steel surface.
For full care instructions, see our Stainless Steel Cleaning Guide.
**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**
Dimensions
Delivery
Delivery
From stock usually 1 to 2 working days.
Delivery Times
Delivery times stated on the website are indicative of the average time it takes to deliver each product. All delivery times are based on working days and do not include weekends or Bank Holidays.
For remote areas sometimes deliveries may take a little longer than specified.
We will contact you if there are any known delays in the delivery times on your order.
Delivery Method
All orders are despatched by the most suitable and economic method.
If you have ordered several items they may arrive separately to make sure they are delivered by the quickest and most appropriate method, and to guarantee you get the best prices.
Please note our carriers do not offer fixed time slots, and due to time constraints are not able to telephone before delivering.
FAQs
We stock eight lengths: 500mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm, and 2400mm, covering between one and four simultaneous users.
The trough is 149mm deep, with an additional 39mm splashback to help contain water splash.
Yes, it includes a 38mm central plastic flush-grated waste and built-in wall-mount fixing brackets. An optional 38mm chrome plated brass waste fitting with stainless steel dome grating is available as an option.
WTNS wash troughs are supplied as standard with a single 35mm tap hole per user. These tap holes will suit all single taps from single press button taps up to and including sensor and mixer taps.
If you require different tap holes our alternative model WTN wash trough is available from stock. We are able to drill these wash troughs to suit your individual requirements. This usually takes us one working day, so still available very quickly.
Optional stainless steel front support legs are available in 950mm or 600mm heights to provide extra stability. Both sizes can be easily cut down on site to enable you to fit at your own desired height.
Extras include taps (vandal-resistant, sensor, knee-operated, mixer), bottle traps, trap covers, metal waste fitting, soap/paper dispensers, and front support legs.
Ideal for schools, colleges, sports facilities, commercial washrooms, industrial sites, building sites, portable toilets, animal farms, and other high-traffic areas.
Standard UK delivery is within 1–2 working days for stocked units. We have the largest stock of stainless steel hand washing troughs in the UK.
All units come with a 1-year warranty covering manufacturing and material defects.
Yes, we offer nationwide UK delivery on all of our products, with quick dispatch and competitive shipping rates. International delivery is also be available upon request.
We offer a 30-day return policy for standard stock purchase wash troughs only. Non standard and customised tap hole wash troughs are not eligible for return. To be eligible for a return, items must be agreed before return, in A1 condition, in their original packaging, and unused. Returns are subject to a 30% restocking fee, which helps cover the cost of outward carriage, card processing fees, and other administrative expenses. Please note that the customer is responsible for the return shipping costs. Full return information is attached to your original invoice and in our online terms and conditions. Non stock items and customised items are not eligible for return.
