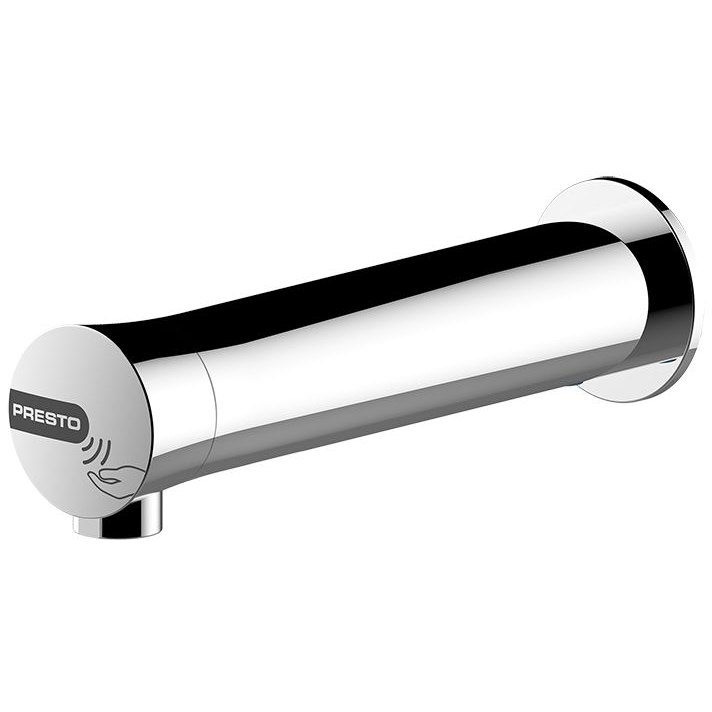

Wall / Panel Mounted Sensor Tap - Mains Power Supply
Product Code: WMST-M
Description
Infrared Wall / Panel Mounted Tap With Mains Supply
Product Code: WMST-M
- Time Flow wall / panel mounted sensor operated infrared tap.
- 7 seconds run time.
- Time flow operation resolves the problem of the tap turning off when the users hands leave the sensor area.
- The sensor area is set close to tap to prevent reflections falsely triggering operation.
- Suitable for walls or panels up to 35mm thick.
- Chrome plated brass body.
- Flow rate 1.9 litres per minute.
- Anti limescale aerator.
- Single supply for cold or premixed water.
- Mains 240v to 7v transformer in IP65 rated waterproof case.
- Anti overflow security run time of 30 seconds.
- Hygiene autoflush function set to run for 30 seconds 24 hours after last use.
- Tap hole size 28mm to 30mm.
- 2 x 1 metre extension leads provided for battery and solenoid connections.
- 1.5 metre water inlet tube which can be cut to suit installation.
- WRAS approved.
- CE marked.
- 10 year warranty.
Water Pressure
- Min operating pressure required 1 Bar.
- Max static water pressure 5 Bar.
Flow Rates
Pressure (bar) | 1 | 2 | 3 | 5 |
Flow rate (l/min | 1.4 | 1.6 | 1.9 | 1.9 |
Delivery
- In stock 1 to 2 working days.
Options
- Battery supply model.
- TMV3 mixing valve (regulations state these should be fitted close to the tap and ideally one per tap).
Warranty
Warranty is 10 years from supply and is limited to replacement parts or a complete replacement tap. Water filters / Y strainers will need to have been fitted to comply with warranty. Diagnosis and fault finding will need to be undertaken over the phone with the manufacturers before replacement parts or complete taps are supplied. Warranty is strictly limited to parts / replacements and does not cover labour, time or any other consequential charges.
**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

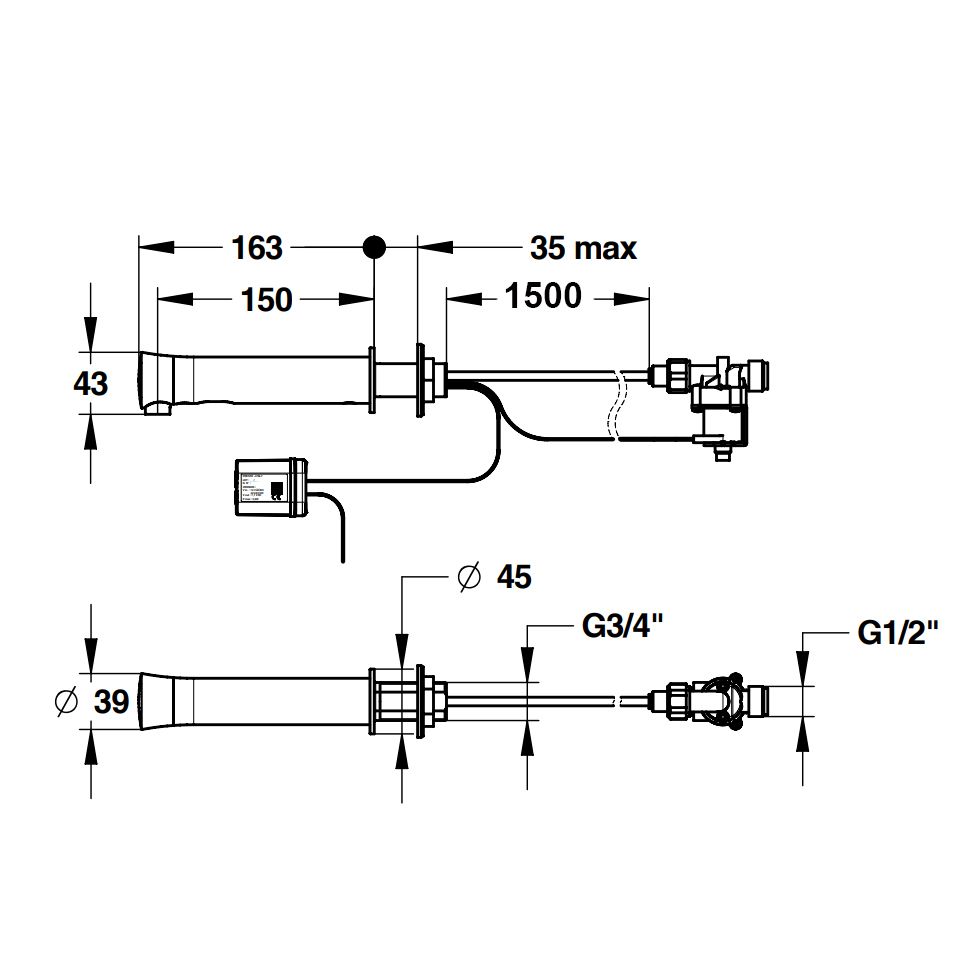

Dimensions
