Stainless Steel Trough Urinals Up To 2400mm Long

Product Code: UWHC

Stainless steel trough urinals in standard sizes up to 2400mm in stock and purpose made lengths up to 3000mm long manufactured to order
from £442.80 inc VATfrom £369.00 ex VAT
Choose Size

from £442.80 inc VATfrom £369.00 ex VAT

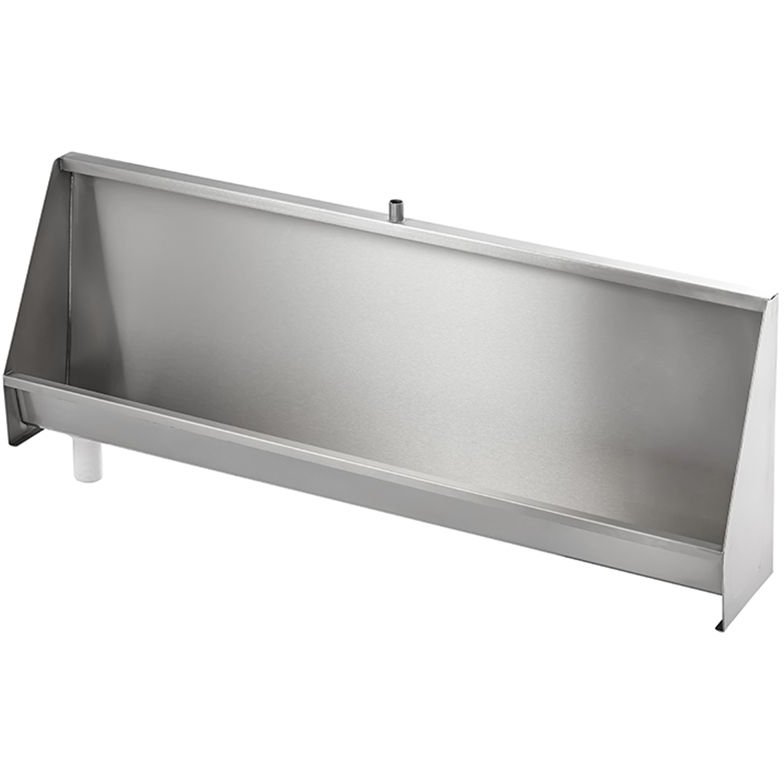

Stainless Steel Trough Urinals

Product code UWHC

Trough urinals manufactured from grade 304 stainless steel with a satin polished finish. Wall mounted urinals offer a cleaner, easier to install, and cheaper alternative to traditional individual bowl urinals. The UWHC model urinals are available to order online in six standard sizes, and can also be manufactured to order in any size up to and including 3000mm in one piece. The urinals come complete as standard with a stainless steel auto flushing cistern, stainless steel downpipe, and 38mm plastic waste fitting. Standard features are:

  • Grade 304 stainless steel.
  • 6 standard sizes in stock for immediate despatch.
  • Vandal resistant horizontal sparge pipe flushing system.
  • Stainless steel auto cistern and stainless steel downpipe (not the cheaper plastic option).
  • Cistern and downpipe located centrally above the urinal (exposed).
  • Optional back entry connection with a concealed cistern and downpipe (made to order).
  • 6 standard sizes with left or right hand outlets and top entry cisterns in stock for immediate despatch - 900mm 1200mm, 1500mm, 1800mm, 2100mm and 2400mm.
  • Left or right hand 38mm waste fitting.
  • Stainless steel cistern included in the price.

How do our urinals differ from cheaper models

  • Our urinals include a stainless steel vandal resistant auto cistern as standard - not plastic - no-one else offers this as standard.
  • 6 sizes with both left and right hand outlets in stock for immediate despatch.
  • Delivery time is usually next working day - for orders placed later in the day it will be 2 working days (time is dependant on the carrier workload).
  • Our horizontal concealed sparge flushing pipes are fitted to the urinal, cheaper models require the installer to fit them to the urinal adding to the installation time and cost.
  • Our urinals are manufactured and stocked in the UK.


  • 900mm, 1200mm, 1500mm, 1800mm, 2100mm, 2400mm urinals with left or right hand outlets, top entry sparge pipes in stock for 1 to 3 working days delivery.
  • All other sizes, centre wastes, or back entry urinals are made to order please call for lead times.

Special Urinals

  • Please contact us to order special length trough urinals.
  • We can also supply urinals for installation on 2 or 3 walls with joint cover trims.


  • Height 450mm.
  • Projection 230mm.
  • Length as ordered.
  • Cistern: 455mm long x 126mm front to back x 282mm high.

Optional Extras

  • Stainless steel trap and downpipe covers.
  • Marnic Water Watch flush controller. Reduced price when bought with a urinal.
  • Corner infill section to create an L shape urinal 256mm x 256mm x 480mm.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

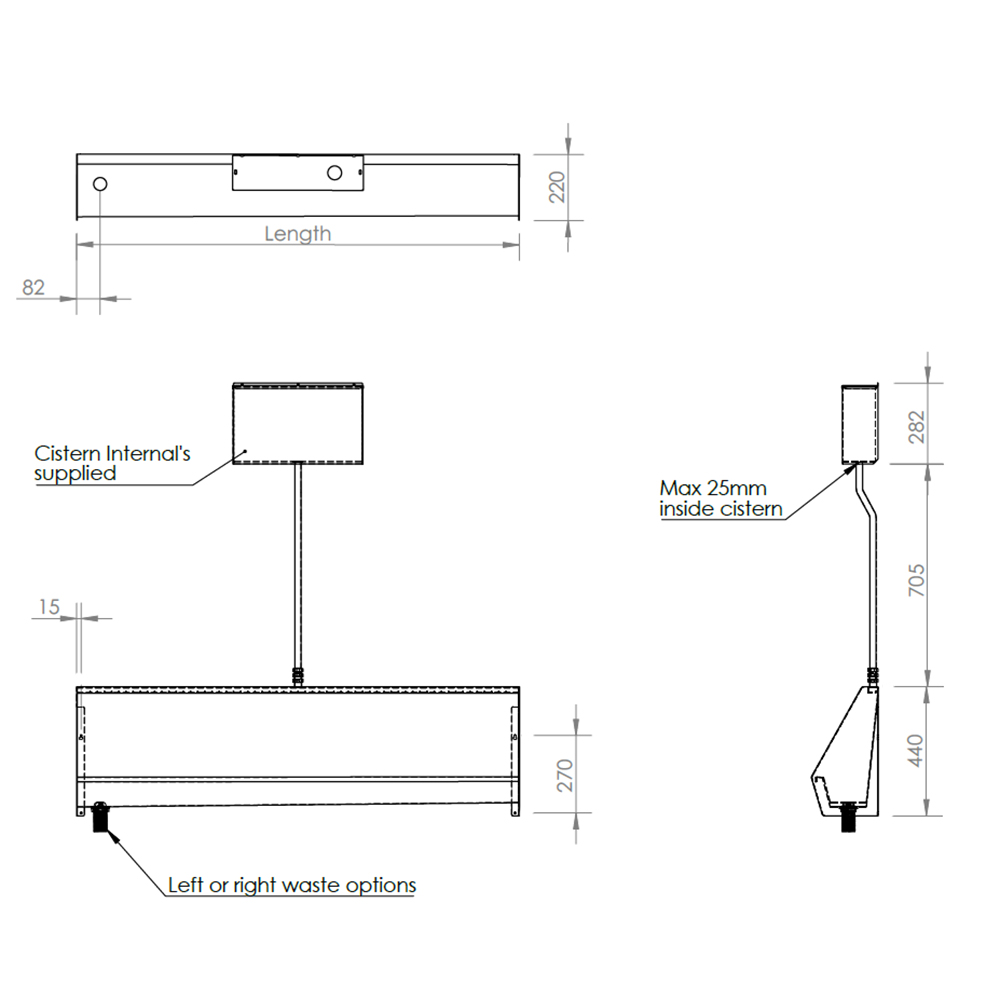

wall hung trough urinal dimensions


From stock usually 1 to 2 working days.
