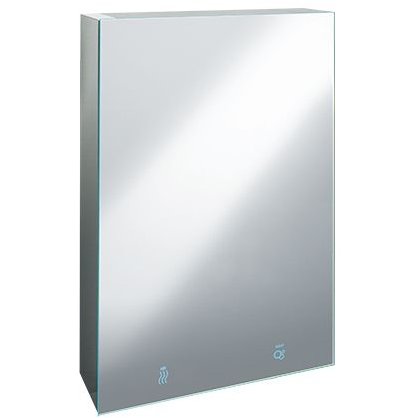

Behind The Mirror Hand Dryer & Soap Dispenser Unit

Product Code: BTM-HD

ASI’s Velare™ Behind the Mirror (BTM) cabinet system is designed with looks and safety in mind. Hand dryers and soap dispensers are concealed behind a mirror in a cabinet manufactured from grade 304 stainless steel. The cabinet features a top hinged mirrored door with twin damped gas springs to assist opening and has a lock in the bottom. Two backlit icons indicate the location of soap and hand drying functions provided from the bottom of each module.

  • Grade 304 stainless steel cabinet.
  • 6mm thick frameless tempered glass with pencil edges and eased corners.
  • Wall brackets supplied.
  • The stainless steel cabinet conceals a hands-free automatic liquid soap dispenser with a 1.5 litre capacity and a high-speed hand dryer (208V to 240V) equipped with a HEPA filter.
  • The door has a stainless steel intermediate stiffener and stainless steel back plate with integral welded support mounts, hinge and lock keeper.
  • The mirrored door is attached to the cabinet using a full width 4.8mm diameter concealed piano hinge.
  • Locked using a tumbler lock and key.
  • Support for mirror door is provided by twin damped gas springs to assist opening from 15° to 90° with soft-stop cushion at full open and when lowering to full closed position for locking.
  • Mirror backlit icons operate on 12V DC transformer.
  • Quad (double-duplex) outlet (by others) required in back of cabinet for hand dryer and transformers.

Unit Specification:

  • 208V to 240V hand dryer on left hand side.
  • Hands free 1.5 litre liquid soap dispenser with 6V AC/DC transformer on right hand side.

Soap Viscosity and pH requirements:

  • Viscosity Range (mPa·s or cP): 100 – 3k.
  • pH Range: 5.5 ~ 8.5.

Dimensions:

  • Width: 600mm.
  • Height: 900mm.
  • Depth: 192mm.
  • Matching filler modules are available as spacers between or at end of cabinets sized 375mm and 591mm.

Delivery

  • To order usually 4 to 6 weeks.

Options:

  • 375mm filler module (model 0661-FM-14)
  • 591mm filler module (model 0661-FM-23)
  • Paper towel dispenser and liquid soap dispenser

Prices

Due to the nature of the products and the amount of options available please contact us for prices by email on enquiries@washwareessentials.co.uk or by phone on 01275 400456.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**

hand-dryer-behind-the-mirror-dimensions
