Wall Mounted Bottle Filler

Product Code:
£685.20 (inc VAT) £571.00 (exc VAT)
In Stock 2 to 3 Working Days
High - 545mm
Wide - 350mm
Front to Back - 85mm

Bottle Aperture
335mm High
125mm Wide

Unit Price (exc VAT):

Total Price (inc VAT): £685.20

Wall Mounted Bottle Filler

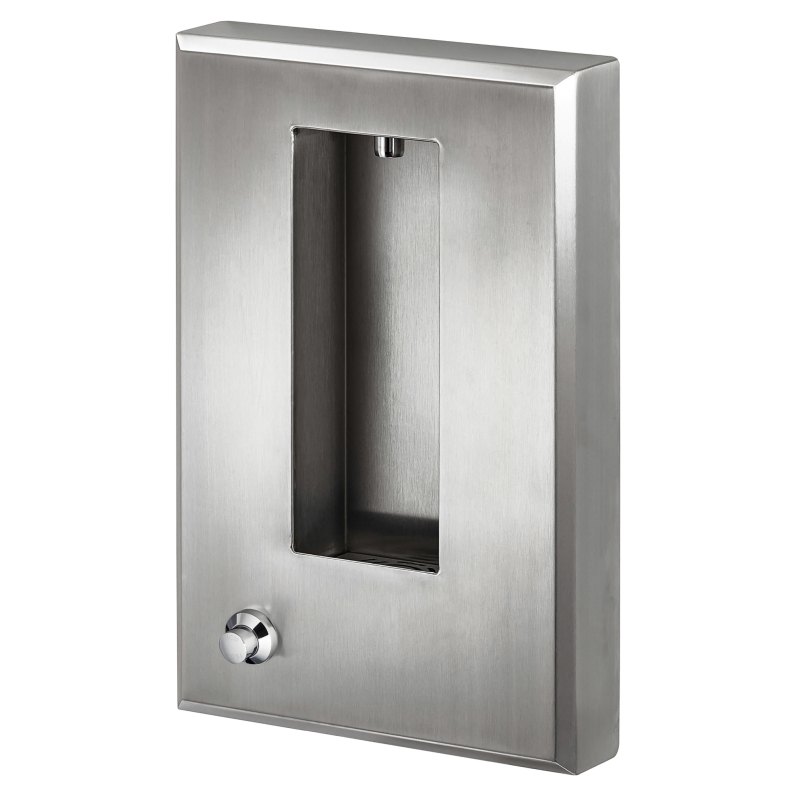

  • surface mounted bottle filler
  • bottle filler in use

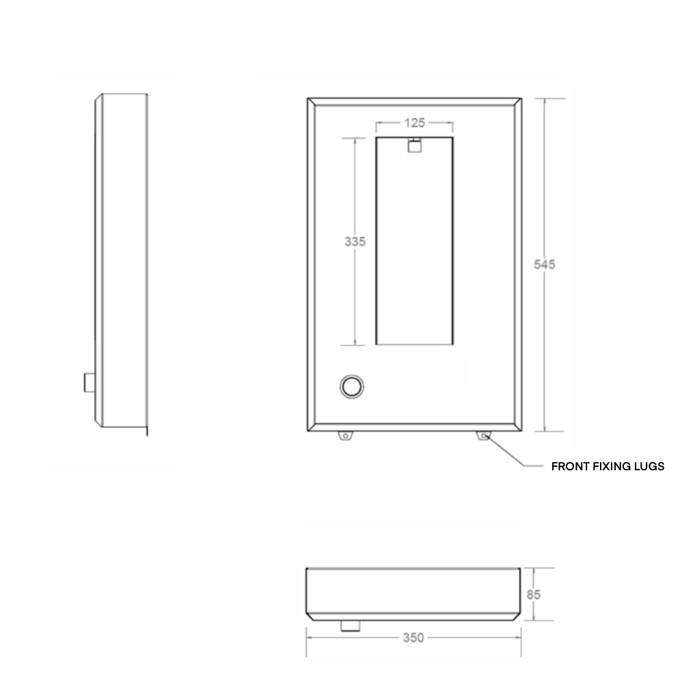

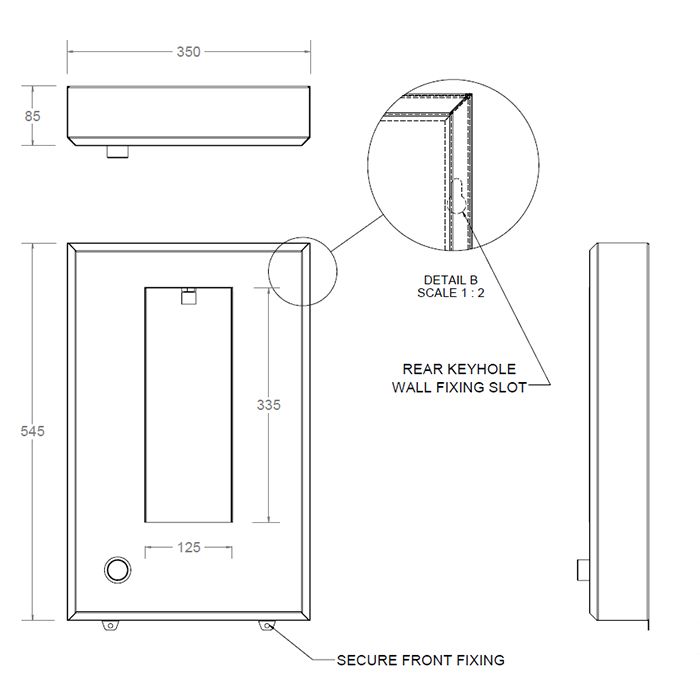

  • surface mounted bottle filler dimensions

Product Detail

Surface Mounted Bottle Filling Unit

Product Code WMBF

Stainless steel wall mounted bottle filling station with hand / forearm operated water supply. The surface mounted design allows installation onto the face wall with the water supply and waste connections through the back wall. The vandal resistant compact design is suitable for most public areas where bottle filling is required.

  • Easy operation with hand or forearm.
  • On / off operation helps reduce water waste.
  • Refilling plastic bottle reduces plastic waste.
  • Stainless steel grade 304 construction, 1.2mm thick.
  • 85mm space saving projection.
  • Large bottle filling aperture to suit most drinking water bottles (up to 750ml).
  • WRAS approved valve, outlet, fittings and pipework.
  • Keyhole slots for simple installation.
  • Supplied with 32mm waste fitting and flexible waste pipe.

Overall Size

  • Height: 545mm.
  • Width: 350mm.
  • Front to back: 85mm.

Bottle Aperture

  • Height: 335mm.
  • Width: 125mm.


  • From stock usually 2 to 3 working days.

Click here to see our full range of drinking fountains.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**
